Overview

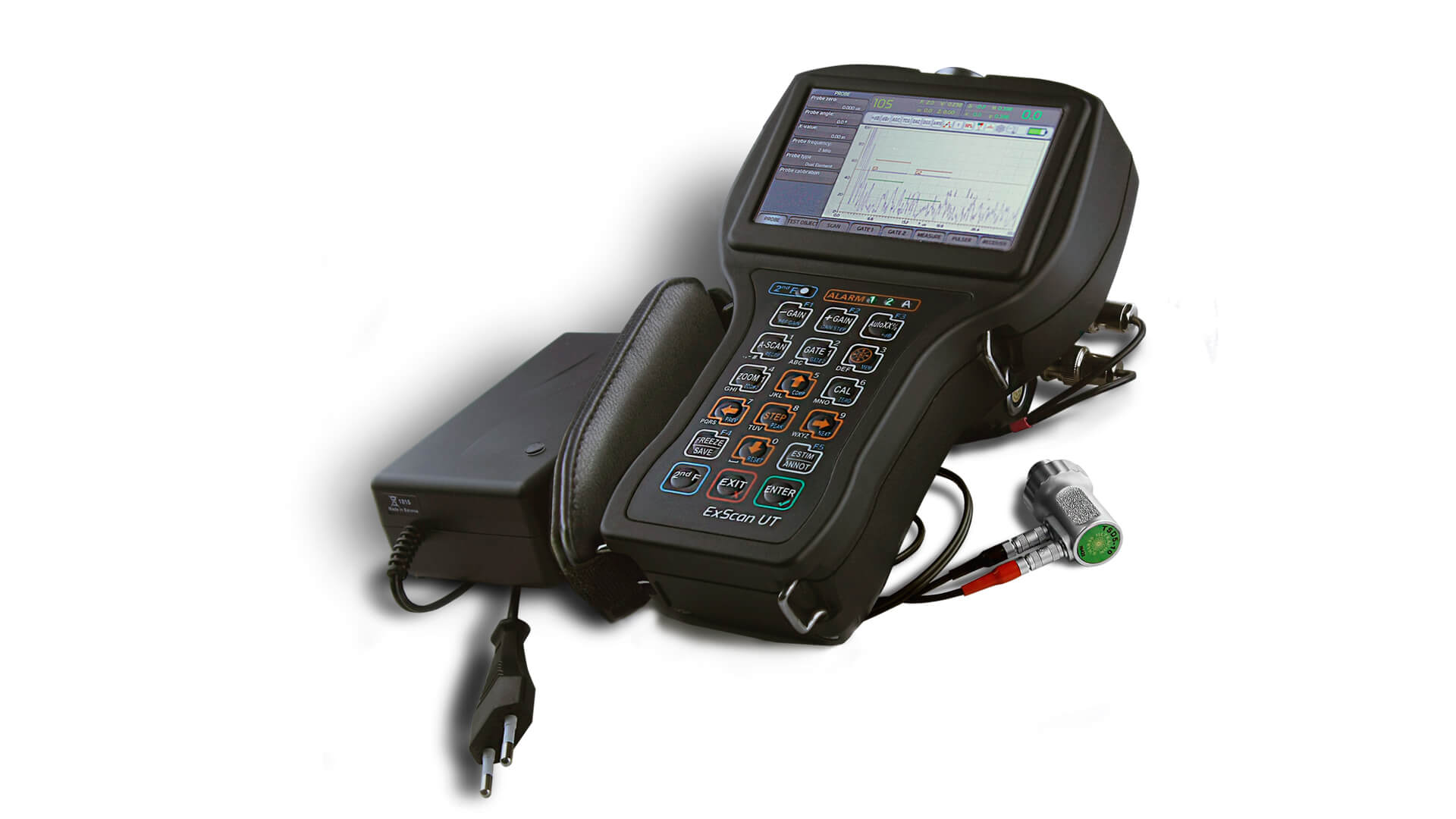

Light, ergonomic, fast, reliable and accurate - this is a handheld portable ultrasonic flaw detector of the new generation ExScan UT. The device is simple and easy to use. Due to the shape of the case, the hand strap and the low weight (less than 2 lbs.), It is easy to carry out measurements by holding the flaw detector with one hand in areas with the limited access to the testing object or in case climbing equipment during testing is employed.
The device is designed for manual testing of products for the presence of defects such as cracks, pores, delaminations, inhomogeneities at finished products, semifinished products and welded joints, as well as to estimate the sound velocity and defects equivalent sizes. Available in three versions: UT, Thickness Gauge+, and UT and Thickness Gauge+.
ExScan UT is user friendly thanks to a special interface philosophy: "Do not browse the menu, just press the button!", Pressing one or a couple of buttons grants access to the most frequently used functions. Quick and easy calibration of the device with the help of direct rays, angular rays and Rayleigh probes on standard samples or even on an object under test.
To quickly adapt new users to the interface of the device, the ExScan UT offers several options: context lighting, prompts for menu items, menu presets (a full menu, Simple1 & Simple 2). The protection level of the device is IP65, the operating temperature range is -22 ° F to 122 ° F, it is resistant to ionizing radiation and high humidity, which makes it possible to successfully use the device in harsh operating conditions.
Main Specifications
Display size:
4.5 in
Display resolution:
800×480
Probe connectors:
2 × BNC or 2 × LEMO-1 or 2 × LEMO-00
Connector Analog output:
Alarm
USB:
Type A
LAN:
+
Pulser Types:
Spike + Square Wave (SWP)
Pulser Voltage (SWP):
50 V, 100 V, 150 V, 200 V, 250 V, 300 V, 400 V
Pulser Energy (SWP):
20 ns to 1000ns with 10 ns step Manual & Auto modes
Pulser Voltage (Spike):
Low: 50 V, High: 300 V
Pulser Damping:
+
Pulser PRF modes:
Smart, Low, Medium, High, Manual
Pulser PRF:
from 15 to 6000 Hz
Pulser Phantoms control:
3 modes
Receiver Range (at steel longitudinal wave):
314 in (8 000 mm)
Receiver Gain:
0 to110 dB, with 0.1 dB step
Receiver Max signal input:
20 V p-p
Receiver Bandwidth:
0.2 MHz - 27 MHz
Receiver Filters:
0.2-27 MHz - 20 MHz
Receiver Filters set choice:
+
Receiver Rectification:
RF, FW, Pos. HW, Neg. HW
Receiver TCG (TVG):
110 dB; 110 dB/μs slope
Receiver Signal Average:
OFF / 2x / 4x / 8x / 16x / 32x / 64x
Receiver Reject (cutoff):
0-80% FSH
Measurement Number of gates:
2
Measurement Number of cursors:
2
Measurement Modes:
1, 2, C1, C2, 1-2, 1-C1, 1-C2, 2-C1, 2-C2, C1-C2
Measurement TOF Modes:
Peak, Edge (Flank)
Measurement Amplitude measurement:
up to 200% FSH
Measurement Units:
in / us / mm
Measurement Output fields:
5
Alarm Number of gates:
2
Alarm Number of levels:
3
Flaws evaluation AWS:
+
Flaws evaluation DGS (AVG):
+
Flaws evaluation DAC:
+
Flaws evaluation DAC: Number of points:
128
Flaws evaluation DAC codes:
ASME & ASME III, EN 1712, EN 1713, EN1714, JIS Z3060, GB11345, GB 4730
Flaws evaluation Custom DAC curves:
up to 6
Flaws evaluation DAC 20-80:
+
Flaws evaluation DAC & TCG:
+
Memory Setups:
+
Memory Datasets (with A-Scans):
+
Memory Capacity:
2 GB (up to 64 GB)
PC software:
+
Coupling control:
+
AGC:
independent for both gates
Quick calibration:
+
Quick estimate (Best signal catch):
+
Auto XX % (50% or 80%):
+
Reference gain:
+
Peak hold (collect, peak memory):
+
Signals compare:
+
Smart zoom:
+
Choice of menu systems:
Full Simple 1 Simple 2
Keyboard backlight:
+
Smart (Context) keyboard backlight:
+
Number of keyboard shortcuts:
41
Physical Dimensions:
9,50x4,40x5,30 in (241 x 112 x 134 mm)
Physical Weight incl. battery:
2,1 lb (0.95 kg)
Physical Operating temp. range:
22 °F to 122 °F (30 °C to 50 °C)
Physical Dust & water protection:
IP65
Physical Battery life:
8 h
Physical Replaceable battery:
+
Delivery set
Electronic unit
Piezoelectric transducer:TSD5-10
Connection cable probe / Electronic unit (2lemo00×2BNC)
Mascot Type 2542 Charger
Hand strap
PC software for version “UT” and “Thickness gauge +”
Battery unit
Bag
ExScan UT quick start guide operating manual for Sonocon B version "UT"
ExScan UT quick start guide operating manual for Sonocon B version “Thickness gauge +”
ExScan UT quick start guide operating manual for PC software for version “UT”
ExScan UT quick start guide operating manual for PC software for version “Thickness gauge +”
ExScan UT quick start guide operating manual for Mascot charger
