Overall dimensions:
1,18 x 5,31 x 3,86 in (30 mm × 135 mm × 98 mm)
Weight:
up to 2lb (0.9 kg)
Applicable standards:
СЕ, EN-15548
Supply mains:
100 V to 240 V, 50 Hz - 60 Hz
Inputs & outputs:
2.0 USB-port (hub), Ethernet (Lemo 4-way), headphones (Lemo 4-way)
Keypad:
English, international (icons)
Operation temperature:
-4 to 122 °F (-20 to +50 °C)
Storage temperature:
-4 to 122 °F (-20 to +50 °C)
IP rating:
IP 64
Battery type:
Li-Ion 12В/4500 mA·h
Battery Operation time:
Normal mode — up to 7 hours If using rotary scanners — 4 to 5 hours
Display size:
3,62 х2,28 in (93.6 mm ×56.16 mm)
Display Type:
Color TFT (800×480 pixels)
Display modes:
Normal, full-screen; three color schemes
Display Grid:
Three types: coarse, fine, polar
PC software:
Test results processing program
Data storage:
MicroSD 4 Gb internal memory card (up to 64 Gb as an option)
Frequency range:
0.01 to 16000 kHz
Gain:
70 dB
Probe supply voltage:
0.5 V; 1V; 2V; 4V; 6V
Additional gain:
30 dB
Phase rotation:
0 to 359.9
Phase rotation:
0 to 359.9
Digital scale:
1/16 to 16, with a step of 6 dB
Test frequency:
1 to 11 kHz
Signal indication time:
0.1 s; 0.3 s; 0.5 s; 1 s; 2 s; 3 s; 4 s; 5 s; 8 s
Filter:
Low-pass: 1 to 5 500 Hz
High-pass: 1 to 5 500 Hz
Bandpass
Averaging
Differential
Connected probes:
Single- & transformer-type
Probe connector:
Lemo 00, Lemo 12-way / Lemo 16-way
Signal display modes:
Complex plane – X(y); Time base – X(t), Y(t); Dual-frequency mode
Threshold level types:
Circle, Threshold, Sector, Trapezium
Multi-frequency operation:
Dual-frequency multiplexing; Independent control of both frequencies; Mix of two frequencies (F1 - F2, F1 + F2)

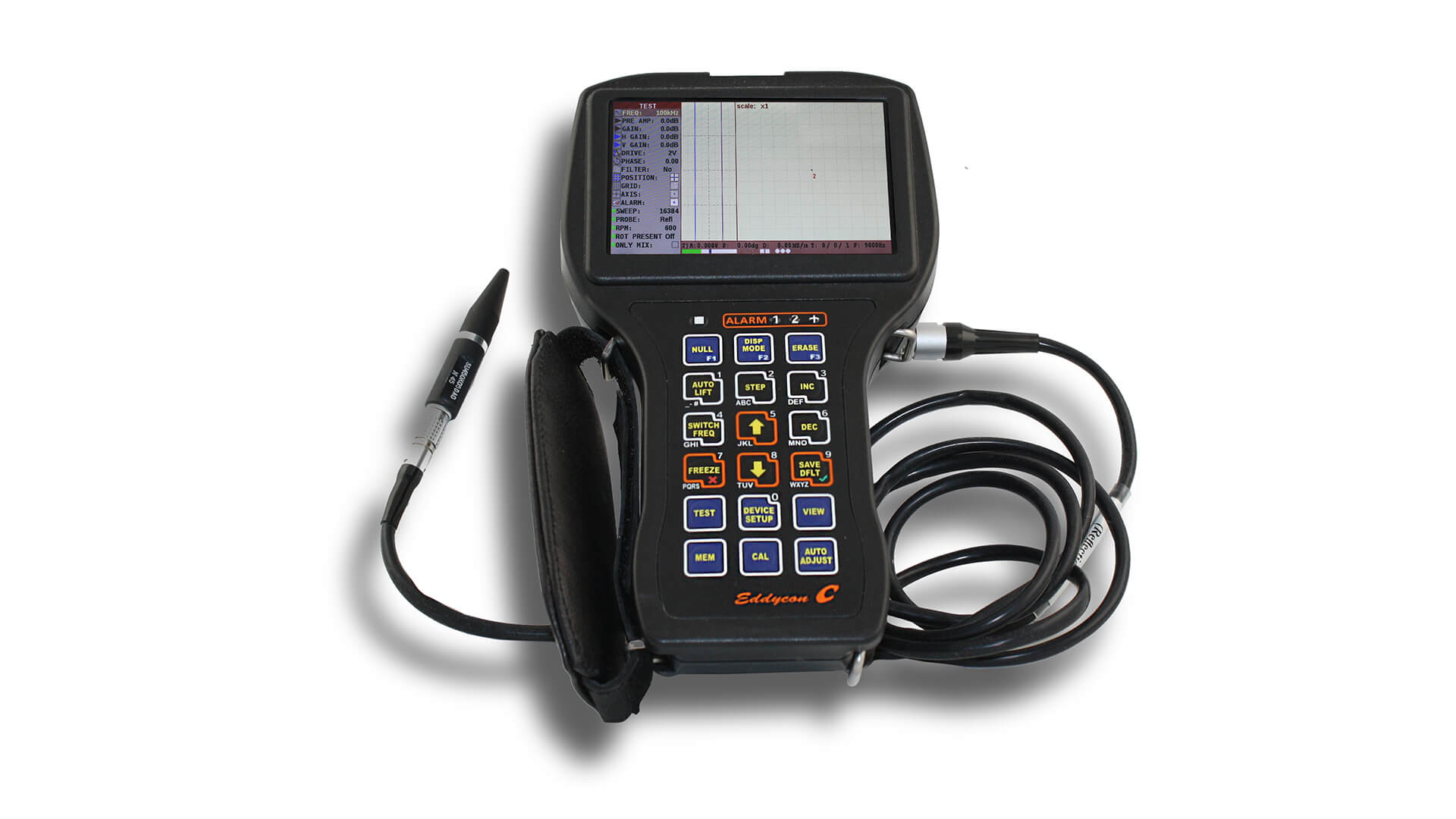

Eddy current flaw detector Eddycon C (Lemo 12)
Eddy current probe SU450K05DA0
Connection cable Lemo 16 – Lemo 04 (0В, Reflection)
Charger Mascot Type 2542
Calibration block 2353.08 (Rz 160)
Software for operation with PC
Operating Manual
Quick start guide
Operating Manual Mascot 2542
Registration certificate for calibration block CB2353.08 RC (Rz 160)
Bag
Registration certificate for ECP
