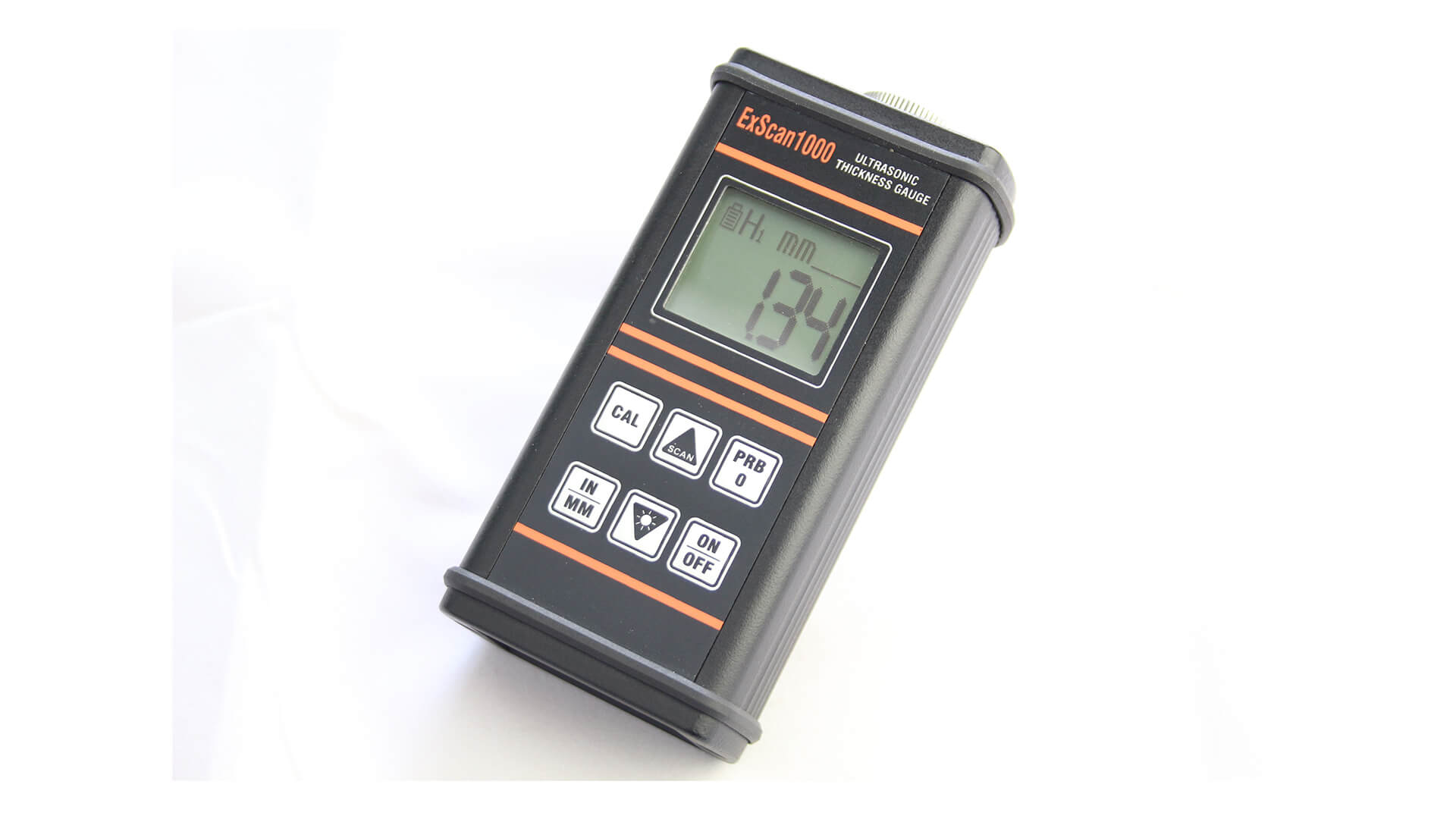

ExScan1000 is an ultrasonic portable thickness tester intended for operational control of the thickness of the products and structural elements made of various materials. The device allows you to accurately measure the thickness of the object, even with one-sided access to it.
The device measures the thickness of products made of metals, plastic, composite materials, fiberglass. ExScan1000 is ergonomic and easy to use. This thickness gauge is simple and reliable in operation, displays the measurement result almost instantly and indicates the quality of an acoustic coupling during the measurement. Instrument control is intuitive and convenient. Large characters on the display and the screen backlight makes it easier to read the measurements results in bad weather.
The device is made in a protected housing with IP-65 degree of water and dustproof. Comfort for working with the device is also provided by a sealed membrane keyboard, resistant to oils, petrol and other contaminants. The battery of the device lasts for up to 200 hours of continuous operation.
10,58 oz (300g)
4.62 x 2.34 x 1.36 in (117.5 x 59.6 x 34.6 mm)
-4 to 120 °F (-20 to 50 °C)
(with display backlight switched off) on alkaline batteries - 200 hours on NiCad batteries - 120 hours
Dual element (T/R)
1 - 10 MHz.
LEMO
78,73 in (2m)
Two “АА” batteries - 1.5V alkaline or 1.2V NiCad
FSTN/POSITIVE LCD
1.2 x 1.0 in (30 mm x 25 mm)
to be used in poor ligh
in, in/µs or mm, m/s
+
Measuring and Scanning
PE
4 readings per second
16 readings per second, with minimum thickness record
.025 to 19.999 in (0.63 to 500 mm)
±.001 in (0.01 mm), depends on probe material and conditions
.001 in (0.01 mm )
.0492 to .3930 in/μs (1250 to 10000 m/s)
one point, two points, velocity
automatic
on built-in calibration block

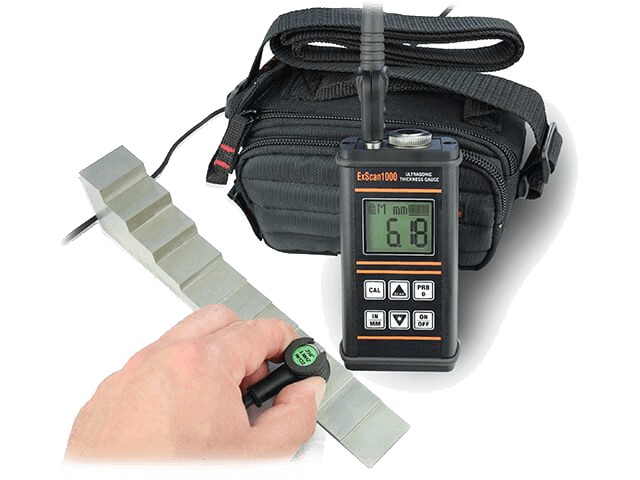

Ultrasonic thickness gauge ExScan1000
AA batteries (Q-ty, pcs. - 2)
.250 in 5 MHz ultrasonic piezoelectric transducer
Soft bag
Transducer`s shoe
Operating manual
